1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

Großes Bild :  1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

Produktdetails:
Herkunftsort: China
Markenname: SUNNY
Zertifizierung: CE,ISO9001
Modellnummer: SN-ARB-C
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: $50
Verpackung Informationen: Holzkiste
Lieferzeit: 7 ~ 15 Tage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 10000 PC-Monat
Ausführliche Produkt-Beschreibung
Name: Kabelschelle Bewertungsgeschwindigkeit: 0.25-2,5 m/s
Anwendbar: Aufzugsteile Geschäftstyp: Hersteller
Garantiezeit: 12 Monate Modell: Kabelschelle
Typ: Kabelschelle Zertifizierung: GB/CE
Bewertungslast: 1000-2500kg



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed



Parameter Table



  ARB-A ARB-B1 ARB-C
Traction ratio 1:1 2:1 1:1 2:1 1:1 2:1
Rated speed(m/s) 0.25~5.0 0.25~2.5 0.25~3.0 0.25~1.5 0.25~2.5 0.25~1.25
System mass(excluding rated mass)(kg) 675~4300 1350~8600 2100~7100 4200~14200 2100~11000 4200~22000
Rated Mass(kg) 320-1000 640~2000 1000~1750 2000~3500 1000-2500 2000~5000
Traction rope diameter d(mm) Φ8-Φ16 Φ8-Φ16 Φ8-Φ16
Traction rope outermost distance(mm) ≤172 ≤172 ≤192
UCMP speed(m/s) ≤1.5 ≤1.2 ≤1.2
ACOP speed(m/s) ≤6.93 ≤3.23 ≤4.22 ≤2.05 ≤3.32 ≤1.66
The maximum tilt angle(clockwise) 45° 45° 45°
Electric interface

Rated voltage 24V, rated current ≥3.5A/5A, standby power ≥6W

Rated voltage24V,Rated current≥3.5A/A,Maintain stand-by power≥6W

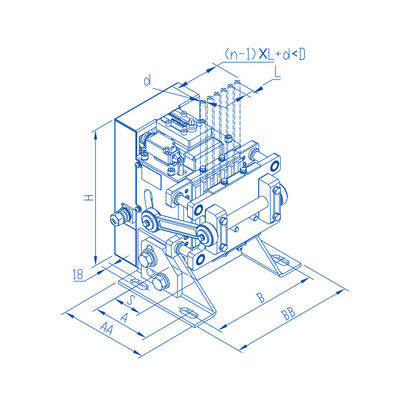

Interface table

Model

Type

Interface

Serial number

No.

Installation interface

Arrangement(mm)

Mounting hole

radius

External dimension

(LxWxH)(mm)

A AA B BB D H S
ARB-A ARB-B1 1 130 200 201 241 117 328.5 88~89.5 R9 283x241x328.5
2 130 200 240 280 157 328.5 88~89.5 R9 283x280x328.5
3 130 200 255 295 172 328.5 88~89.5 R9 283x295x328.5
ARB-C 4 130 200 283 323 192 328.5 88~89.5 R9 283x323x328.5



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 0



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 1



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 2



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 3



1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
