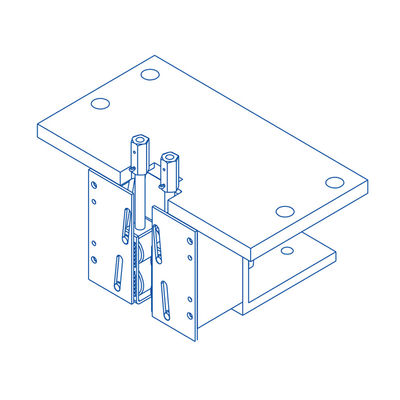

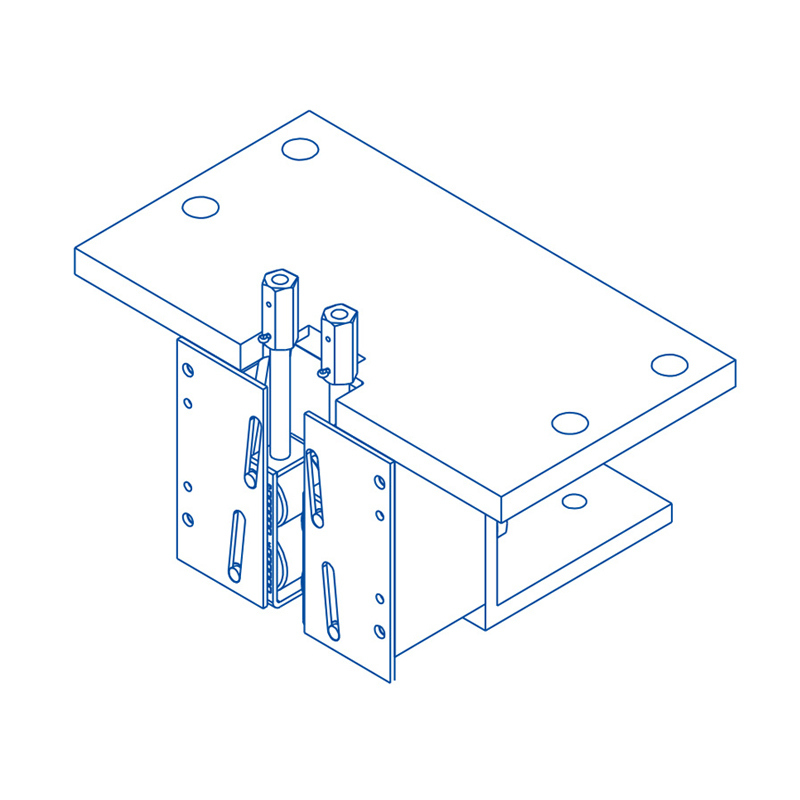

Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Bescheinigung
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Auf Produkt-Qualitätssicherung bestehen, errichtender langfristiger effektiver Mechanismus der Qualität. Es ist ein Vergnügen, mit Ihnen zusammenzuarbeiten.

—— Yuilly

Ich bin online Chat Jetzt

Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Großes Bild :  Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Produktdetails:
Herkunftsort: China
Markenname: SUNNY
Zertifizierung: CE,ISO9001
Modellnummer: SN-SG-QS6
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: $50
Verpackung Informationen: Holzkiste
Lieferzeit: 7 ~ 15 Tage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 10000 PC-Monat
Ausführliche Produkt-Beschreibung
Name: Blitzschneller Sicherheits-Gang Breite der Führungsschienen: 15.88/16mm
P+q: ≤7000 kg Bewertungsgeschwindigkeit: ≤0.63m/s
Anwendbar: Aufzugsteile Geschäftstyp: Hersteller
Garantiezeit: 12 Monate Verpackung: in Karton gepackt
Modell: Blitzschneller Sicherheits-Gang Typ: Blitzschneller Sicherheits-Gang



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q



Parameter Table



Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

≤0.63 ≤0.8 ≤7000 15.88/16 GB Dry/Lubricated 200x300x149





Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 0





Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 1



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 2



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 3



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
