1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Bescheinigung
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Auf Produkt-Qualitätssicherung bestehen, errichtender langfristiger effektiver Mechanismus der Qualität. Es ist ein Vergnügen, mit Ihnen zusammenzuarbeiten.

—— Yuilly

Ich bin online Chat Jetzt

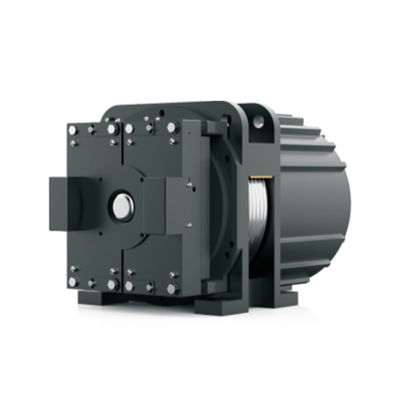

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Großes Bild :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Produktdetails:
Herkunftsort: CHINA
Markenname: SUNNY
Zertifizierung: CE
Modellnummer: SN-GETM2.5DS
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: $500~1200
Verpackung Informationen: Holzkiste
Lieferzeit: 7 ~ 15 Tage
Zahlungsbedingungen: Western Union, T/T, L/C, Paypal
Versorgungsmaterial-Fähigkeit: 5000 PC Monat
Ausführliche Produkt-Beschreibung
Statische Belastung: 3000 kg INS.Klasse: 155 (F)
Bremse Vol: DC110V Frequenz: 50 Hz
Schnüren: 2: 1 Produktname: Einzugsbezugsmotor
Modell: Einzugsbezugsmotor Typ: Einzugsbezugsmotor
Laden: 630 kg Geschwindigkeit: 1.0~1.75m/s
Hervorheben:

gearless elevator motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
