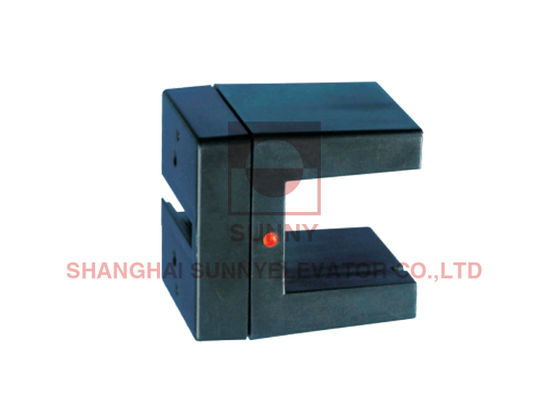

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Bescheinigung
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD zertifizierungen
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Auf Produkt-Qualitätssicherung bestehen, errichtender langfristiger effektiver Mechanismus der Qualität. Es ist ein Vergnügen, mit Ihnen zusammenzuarbeiten.

—— Yuilly

Ich bin online Chat Jetzt

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Großes Bild :  CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Produktdetails:
Herkunftsort: CHINA
Markenname: SUNNY
Zertifizierung: CE,ISO9001
Modellnummer: ET126NS2P
Zahlung und Versand AGB:
Min Bestellmenge: 10pcs
Preis: $7~10
Verpackung Informationen: Standard -Exportpaket
Lieferzeit: 7 ~ 15 Tage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: Monat mit 1000 PC
Ausführliche Produkt-Beschreibung
Name: Aufzugsniveau -Slot -Sensor Anwendbar: Aufzugsausrüstung
Art der Geschäftstätigkeit: Hersteller Transport: Seetransport
Produktname: Aufzugsteile Stromspannung: 10...30VDC
Modell: Aufzugsniveau -Slot -Sensor Produkt: Aufzugsniveau -Slot -Sensor
Ausgabe: PNP oder NPN Temperatur-Grenzen: -20 ~+70 ° ℃

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply 10...30VDC
Riple <10%
Detected object Φ2.0 Above metal objects
Sensitivity adjustment fixed
Emission Infrared(880nm)
Output PNP or NPN
Max. Load Current ≤200mA
No Load Current 15mA or Less
Voltage Drop(Sensor On) <2.5V
Response Time ≤1ms
Short Circuit Protection Yes
Electric Protections Yes
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable









CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 0



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 1



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 2

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
